NFC tags and readers forAndroid

Withthe growing number of NFC-equipped Android phones, NFCtags aregoing over big ovation among users who own Android handsets.And the growth rate of Androidinthe global intelligent mobile phones is there for all to see, which providesmore carriers for NFC tags toengage people's life deeper. If you thought NFC tags wereonly about buying a mocha in coffee shop with your Android phoneoffering contactless payment terminals, think again, because NFCtags havebeen used for so much more. So as a professional leading NFC technology productsmanufacturer, DAILY RFID has also newly released the latest series of NFCtags designedforAndroid system.

NFC tags forandroid

Description

LF and HFOn-Metal Tag-MT009 is specially developed for the NFC (Near Field Communication)and Mobile Phone, Computer tracking. It can be printed with the logo as well asthe UID number. It is able to be encoded and programmed with the RFID Reader andWriter. It is available with 3M glue on the back side and can be direct used onthe metal surface.

This RFIDmetal tag is also available for customization and OEM.

Specification

s Type: Contactless R/O orR/W

sOperating Frequency: LF(125KHz) or HF (13.56MHz)

  IC Available at 125KHz:EM4102, EM4100, EM4001, TK4100, GK4100

  IC Available at 13.56MHz: I-CODE (ISO15693-3), Mifare Ultralight (ISO 14443A), Mifare®1K (ISO 14443A), Mifare®4K(ISO 14443A), Tag-it™ HF-I (ISO 15693-3), others upon request

s Size: 30*30mm,Thickness:1mm

sReadingDistance: Up to 8cm

sMaterial: Epoxy / SpecialMagnetic Material / 3M Glue

sOperating Temperature:-40º C to +80º C

sStorage Temperature:-40º C to +100º C

CompetitiveAdvantage

1.         Waterproof IP68

2.         100, 000 times reading &writing

3.         Excellent read/writeperformance on any metal surface

4.         Exceptional temperature andharsh environmental performance

5.         RoHSCompliant

6.         ISO15693 and ISO1800 -3 standards

7.         Encodingavailable

Reader Details:

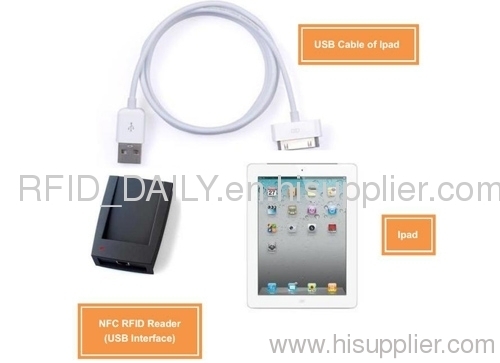

DAILY RFID haslaunched desktop USB NFC reader-02 for NFC application under office environment.This user-friendly NFC reader is plug-and-play device with USB or RS232interface.

RFID USB NFC Reader - 02description

Working frequency: 13.56MHz

Reading or writingstandard charts: Mifare-One S50,Mifare-One S70,Ultralight,

Reading Range: up to 4-10cm

Dining: USB orRS232

Audio / light indication:signal lamps, two-LED

Operating Temperature: -30° C to +40 ° C

Body material: ABSplastic

Color body: mattblack

The output interface:USB

Size (mm): 110 * 80 *24

We can design and developRFID tags and RFID readers in different sizes and different shapes for yourdifferent requirements. For more info about RFID products please kindly visitour website
or mail to us, our saleswill contact you as soon as possible.
